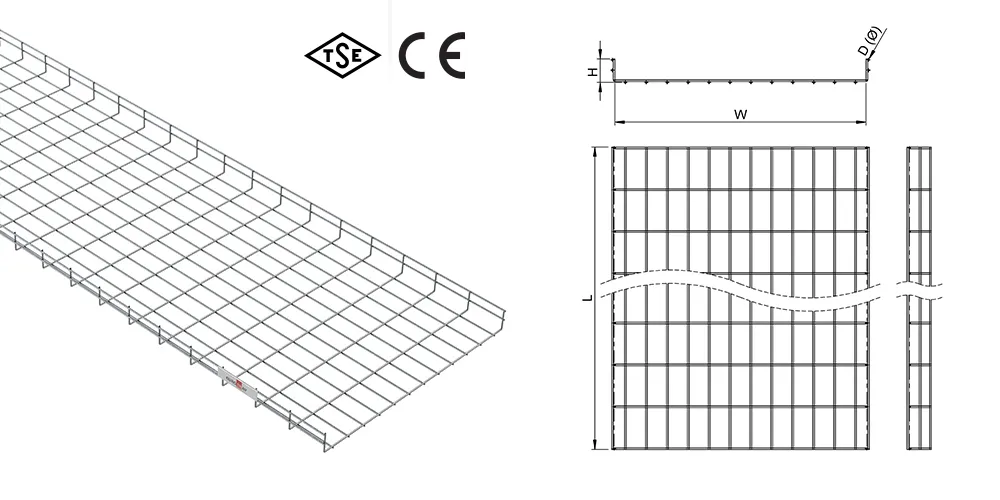

ETT SERIES Cable Tray
| Type | : Wire Type |
| Property | : Designed for easy intervention and proper ventilation |
| Code | : ETT |
| Advantages | : Easy Intervention |
| Thickness | : 4,00 – 5,00 mm |
| Width | : 50-900 mm |
Coating Types
Technical Tables
D4
| # | Product Code | D (mm) | W (mm) | H (mm) | Unit Weight(kg/m) |
| 1 | ETT-05035-400 | 4.0 | 50 | 35 | 0.541 |
| 2 | ETT-10035-400 | 4.0 | 100 | 35 | 0.595 |
| 3 | ETT-15035-400 | 4.0 | 150 | 35 | 0.755 |
| 4 | ETT-20035-400 | 4.0 | 200 | 35 | 0.915 |
| 5 | ETT-25035-400 | 4.0 | 250 | 35 | 1.075 |
| 6 | ETT-30035-400 | 4.0 | 300 | 35 | 1.234 |
| 7 | ETT-05050-400 | 4.0 | 50 | 50 | 0.574 |
| 8 | ETT-10050-400 | 4.0 | 100 | 50 | 0.628 |
| 9 | ETT-15050-400 | 4.0 | 150 | 50 | 0.788 |
| 10 | ETT-20050-400 | 4.0 | 200 | 50 | 0.948 |
| 11 | ETT-25050-400 | 4.0 | 250 | 50 | 1.107 |
| 12 | ETT-30050-400 | 4.0 | 300 | 50 | 1.267 |
| 13 | ETT-40050-400 | 4.0 | 400 | 50 | 1.586 |
| 14 | ETT-50050-400 | 4.0 | 500 | 50 | 1.906 |
| 15 | ETT-60050-400 | 4.0 | 600 | 50 | 2.225 |
| 16 | ETT-05060-400 | 4.0 | 50 | 60 | 0.806 |
| 17 | ETT-10060-400 | 4.0 | 100 | 60 | 0.860 |
| 18 | ETT-15060-400 | 4.0 | 150 | 60 | 1.020 |
| 19 | ETT-20060-400 | 4.0 | 200 | 60 | 1.180 |
| 20 | ETT-25060-400 | 4.0 | 250 | 60 | 1.340 |
| 21 | ETT-30060-400 | 4.0 | 300 | 60 | 1.499 |
| 22 | ETT-40060-400 | 4.0 | 400 | 60 | 1.819 |
| 23 | ETT-50060-400 | 4.0 | 500 | 60 | 2.138 |
| 24 | ETT-60060-400 | 4.0 | 600 | 60 | 2.458 |
| 25 | ETT-10075-400 | 4.0 | 100 | 75 | 1.104 |
| 26 | ETT-15075-400 | 4.0 | 150 | 75 | 1.264 |
| 27 | ETT-20075-400 | 4.0 | 200 | 75 | 1.423 |
| 28 | ETT-25075-400 | 4.0 | 250 | 75 | 1.583 |
| 29 | ETT-30075-400 | 4.0 | 300 | 75 | 1.743 |
| 30 | ETT-40075-400 | 4.0 | 400 | 75 | 2.062 |
| 31 | ETT-50075-400 | 4.0 | 500 | 75 | 2.382 |
| 32 | ETT-60075-400 | 4.0 | 600 | 75 | 2.701 |
| 33 | ETT-10085-400 | 4.0 | 100 | 85 | 1.126 |
| 34 | ETT-15085-400 | 4.0 | 150 | 85 | 1.285 |
| 35 | ETT-20085-400 | 4.0 | 200 | 85 | 1.445 |
| 36 | ETT-25085-400 | 4.0 | 250 | 85 | 1.605 |
| 37 | ETT-30085-400 | 4.0 | 300 | 85 | 1.764 |
| 38 | ETT-40085-400 | 4.0 | 400 | 85 | 2.084 |
| 39 | ETT-50085-400 | 4.0 | 500 | 85 | 2.403 |
| 40 | ETT-60085-400 | 4.0 | 600 | 85 | 2.723 |
| 41 | ETT-100110-400 | 4.0 | 100 | 110 | 1.180 |
| 42 | ETT-150110-400 | 4.0 | 150 | 110 | 1.340 |
| 43 | ETT-200110-400 | 4.0 | 200 | 110 | 1.499 |
| 44 | ETT-250110-400 | 4.0 | 250 | 110 | 1.659 |
| 45 | ETT-300110-400 | 4.0 | 300 | 110 | 1.819 |
| 46 | ETT-400110-400 | 4.0 | 400 | 110 | 2.138 |
| 47 | ETT-500110-400 | 4.0 | 500 | 110 | 2.458 |
| 48 | ETT-600110-400 | 4.0 | 600 | 110 | 2.777 |
D5
*Hot Dip Galvanized (TS EN ISO 1461)
- Product weights are approximate values, may vary by ± 10%.
- Product weights on the table reflect the weights of products coated with hot dip galvanizing method..
- Standard lengths are 2500 mm and 3000 mm.
- Please contact to your customer representative for detailed information and for your demands with special dimensions.
Load Diagram
H35 (Q4)

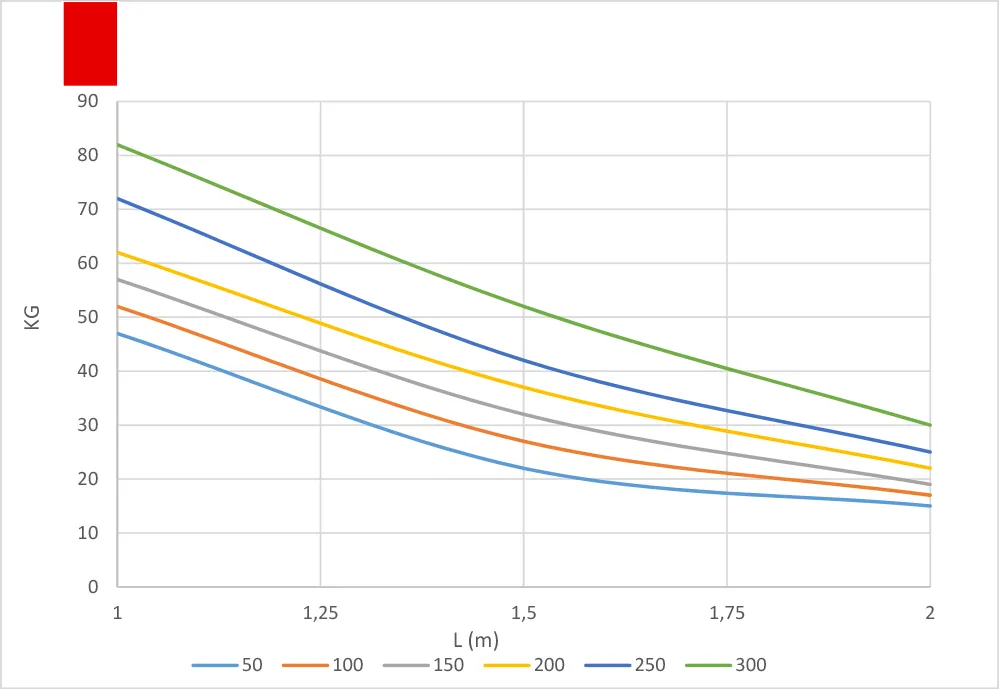

H35 (Q5)

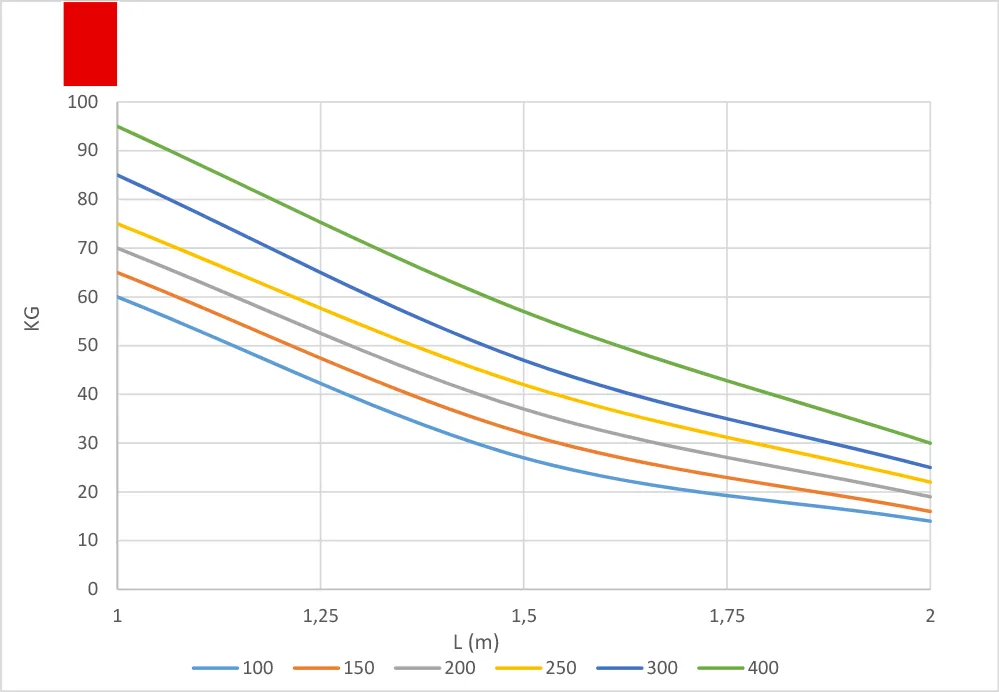

H55 (Q4)

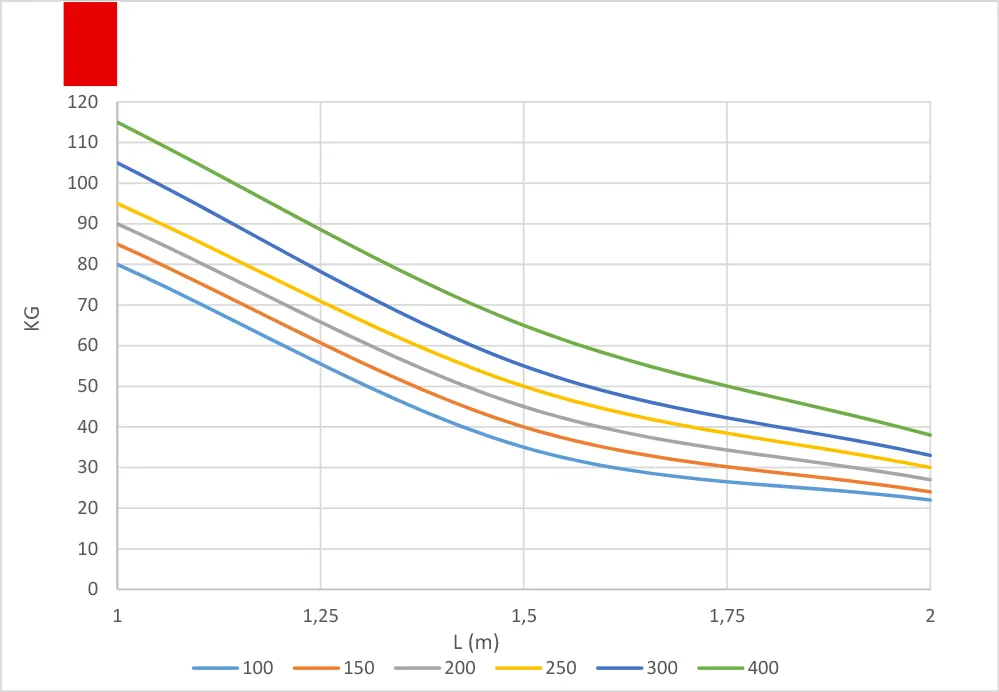

H55 (Q5)
H85 (Q4)

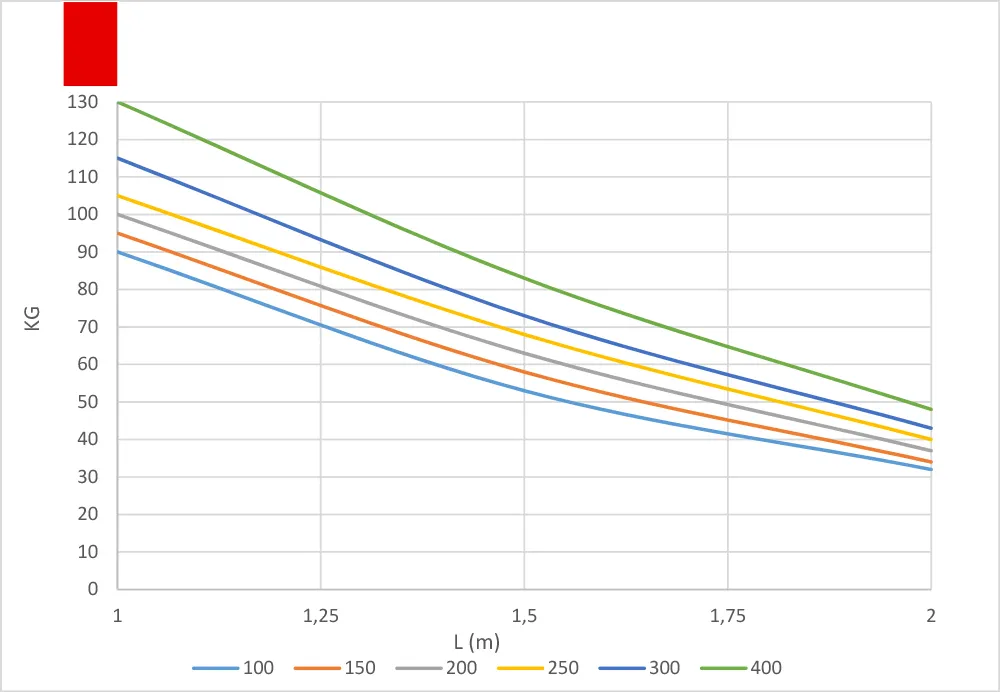

H85 (Q5)
H110 (Q4)

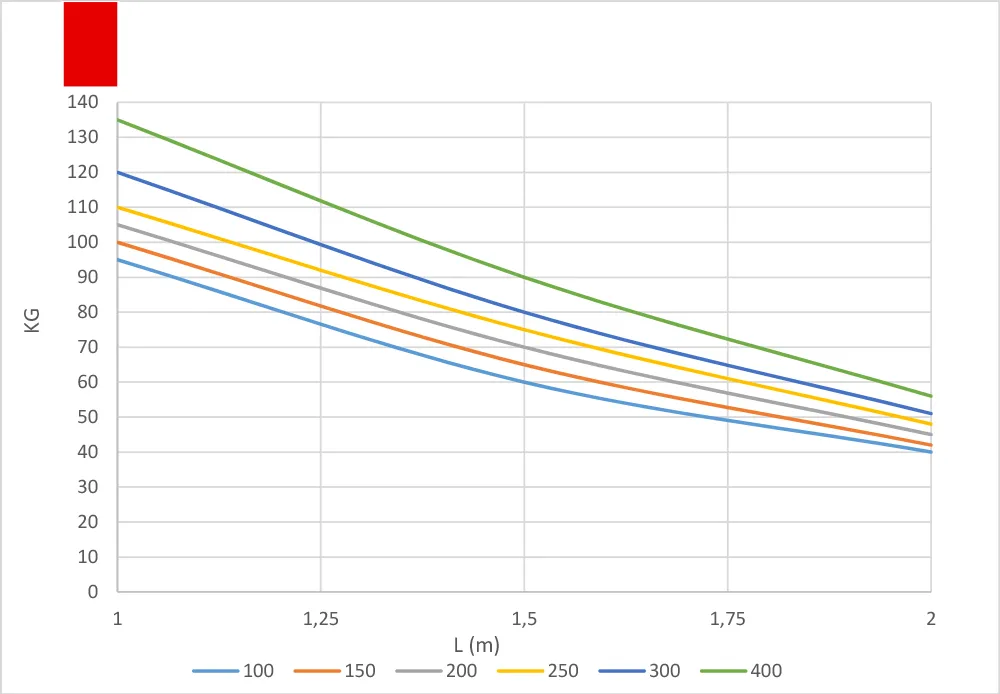

H110 (Q5)
